String Level Bogen-Schalter - PLC
Fonrich Arc Fault Circuit Interrupter (AFCI) is a UL 1699B-certified device engineered to deliver superior AFCI protection by detecting and interpreting arcing in ground-mounted PV systems. It effectively addresses arc issues by enabling arc fault detection at the string level, performing a targeted shutdown whenever an arc is detected.
Product Features & Advantages
This AFCI breaker system supports up to 1500V system voltages and accommodates unlimited string connections, offering exceptional flexibility for large-scale solar installations. Featuring real-time remote monitoring, it enhances AFCI protection performance, lowers maintenance costs, and complies with UL 1699B standards for arc fault circuit interrupters—making it a globally trusted solution for high-power PV environments.
Produktvorteile

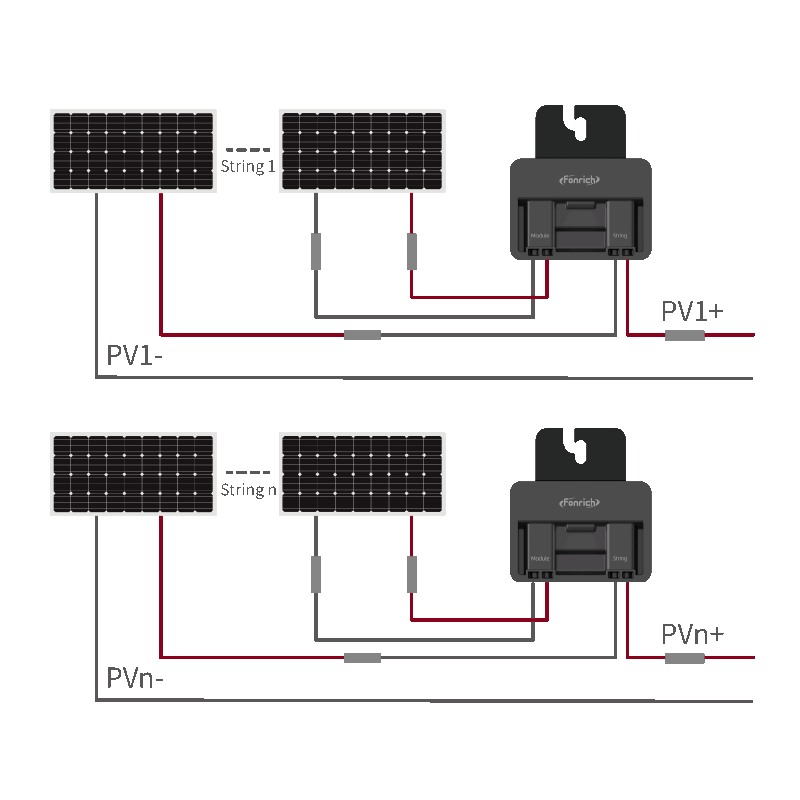

String-Level - Arc-Schutz
Schnell erkennt und löscht Bogen zum Schutz der PV-Anlage
Spannung bis 1500V
Bogenunterbrecher unterstützt 1500V max. System Spannung
Remote Datenüberwachung
Remote-Datenüberwachung über Fonrich-Plattform
Flexible Konfiguration
Keine Begrenzung der Anzahl der Strings
Technische Parameter
Modell
FR-AFCI-KNJC
max. System Spannung
1500 V
max. System Current
PLC / LoRa
Spannungsbereich für den Betrieb
20 Vdc ~ 60 Vdc
max. Anzahl der Strings
1
Dimension
132×120×45 mm
