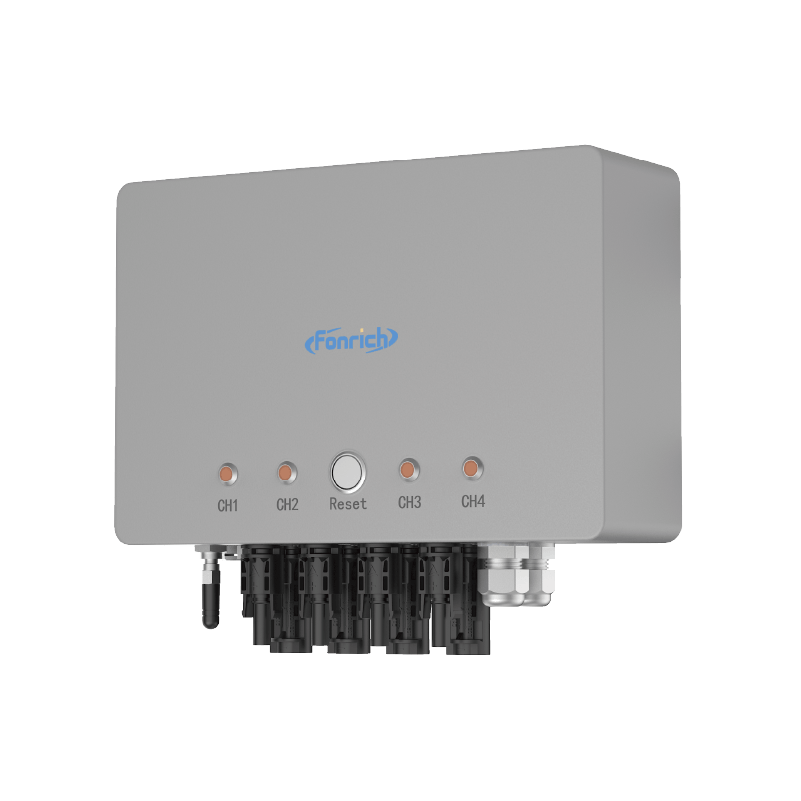

Arc Protection Box
Designed for rooftop PV systems, this solution quickly meets arc fault detection and protection requirements. It supports up to 4-channel arc fault detection and offers both WiFi and Bluetooth communication options.
Product Features & Advantages
This new Arc Protection Box provides rapid arc detection and interruption to safeguard PV systems, supporting up to 1100V system voltage and featuring a flexible 4-channel configuration for broad compatibility. It enables convenient remote fault monitoring via the Fonrich APP, enhancing system management and reducing downtime. Designed for quick wall-mount installation, it offers a fast and efficient retrofit solution to integrate AFCI protection into existing solar systems.
Produktvorteile
Schneller Arc-Schutz
Erkennt und löscht schnell Bogen, um das PV-System zu schützen.
Bequeme Wall Mounted Installation
Jedes Gerät ist mit einer 4 - Kanal-Bogen - Fehlererkennung ausgestattet.
Remote Fault Monitoring
Einfache Remote-Fehlerüberwachung über Fonrich APP.
Spannung bis zu 1100V
Arc Protection Box unterstützt 1100V max. Systemspannung.
Technische Parameter
Modell
FR-AFCI-B04A
max. System Spannung
1100 V
max. System Current
Bluetooth & WiFi
Spannungsbereich für den Betrieb
100 Vac ~ 260 Vac
max. Anzahl der Strings
4
Dimension
240×160×75 mm
