Smart Power Optimizer - Thermal Plus - 800W

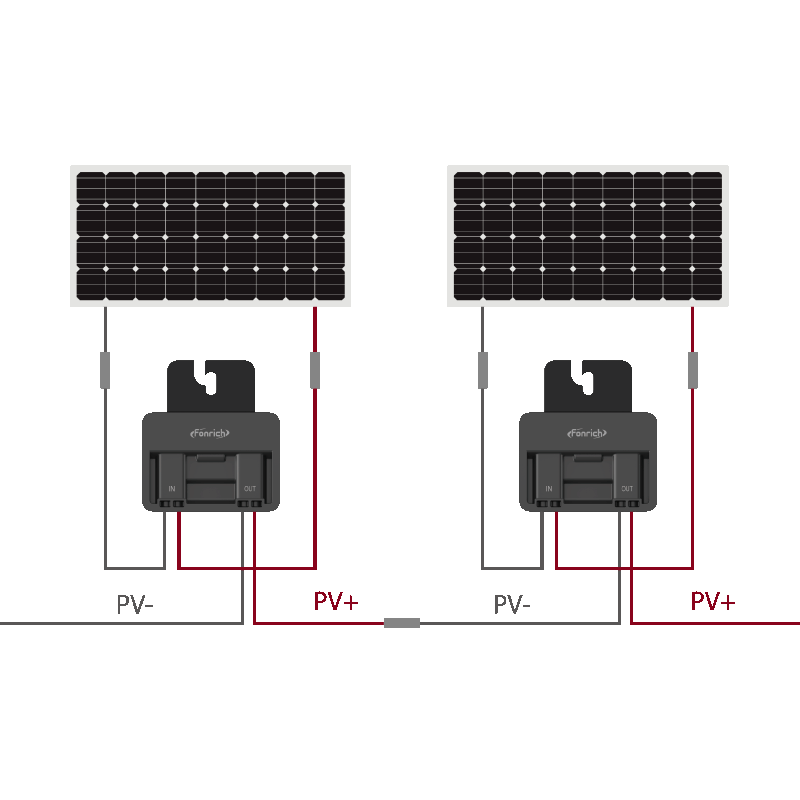

Fonrich solar power optimizer, also known as a PV optimizer or solar panel optimizer, maximizes energy output by minimizing losses from shading and mismatch. Designed for one optimizer per panel, it supports easy PV install and is ideal for both residential and commercial solar optimization. This enhanced version is equipped with an advanced heat sink for superior thermal management, ensuring higher efficiency and longer lifespan in high-temperature environments. Available in two models: one-to-one (single panel) and one-to-two (dual panel) configurations, offering greater flexibility for various system layouts.
Features & Advantages
Built with rapid shutdown and remote monitoring via SafeSolar App, this solar DC optimizer enhances system safety and management. Its long-distance communication and flexible design make it a preferred choice among solar optimizers and optimisers for solar panels globally. Fully compliant with NEC 2023, NEC 2020, NEC 2017 and UL 3741, it meets the highest industry safety and performance standards. The enhanced cooling model features an upgraded heat sink for improved heat dissipation, making it especially suitable for hot climates or high-load installations.
Produktvorteile
Verbesserte Effizienz der Stromerzeugung
Lösen Sie Stromerzeugungsschäden, die durch Schatten, unterschiedliche Ausrichtung und Fehlpassung verursacht werden
Automatisches / manuelles Schnelles Schalten
Automatischer Schutz oder manueller Abschluss, um Wartung und Brandschutz zu gewährleisten

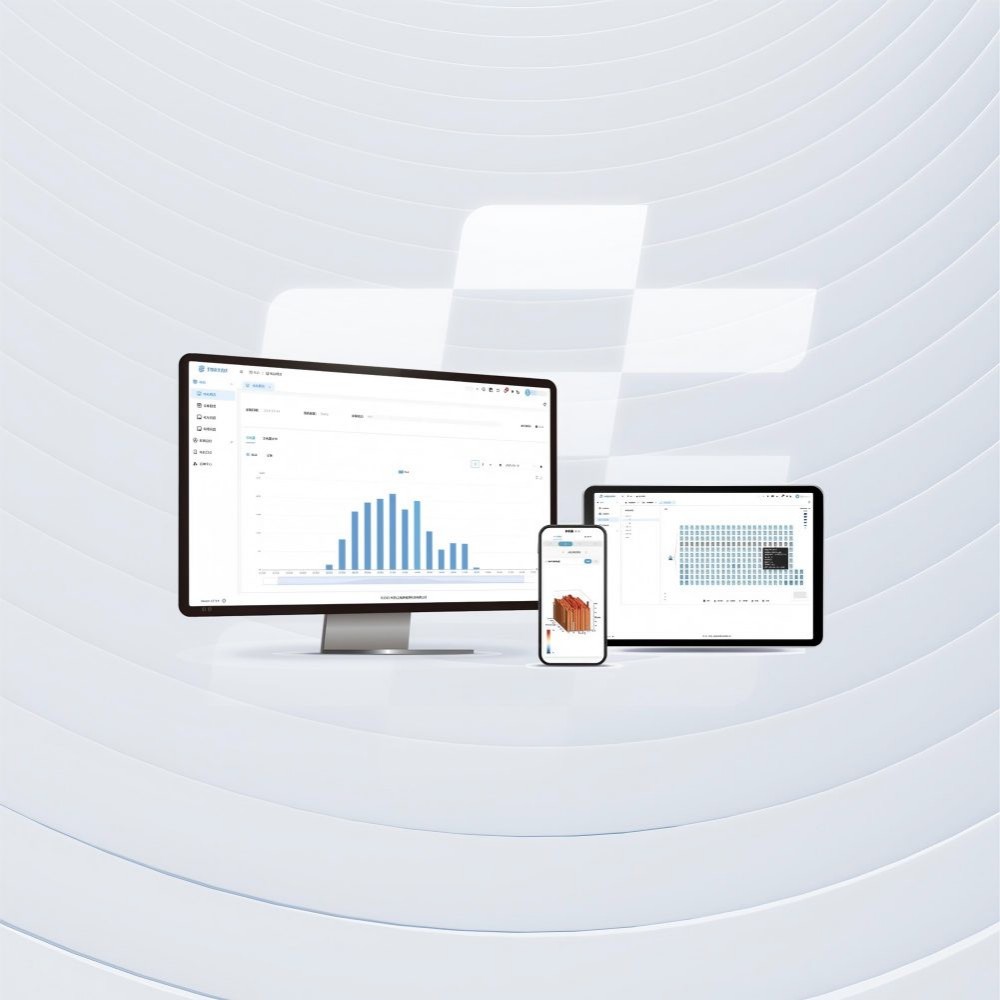

Unterstützt Remote-Datenüberwachung
Snapshots umfassen Spannung, Strom, Leistung, Stromerzeugung, IV-Arbeitspunkt, Temperatur usw.
1600m PLC-Kommunikation
Unterstützt super lange Kommunikationsdistanz
Technische Parameter
Modell
FR-PVMB-C80H
Unterstützte PV-Kanäle / Module
1/1
Maximale Input-Leistung
800W
Betriebsspannungsbereich
17~60Vdc
Max Voc System
1500Vdc
Installationsmethode
Photovoltaic rail
Größe (w / o Kabel und Steckverbinder)
120x132x45mm
Gewicht (inklusive Kabel)
1000g
Sicherheitsstandards
NEC 2017, 2020 & 2023 (690.12); IEC 62109-1; EN 62109-1; UL 3741
